Removing 1894 Rot
The front porch, 1999. Four original columns are visible. The others are later replacements. Note the one to the very left side. Photo by Bob Rodak.
These are the two north 1894 columns. They looked pretty good in 2014. Note the beam above. We will get back to that.
Over the years though I noted that the base of one column was rotting away. Far right. Oh dear.
Today, it was time to do something.
So, Godsend Eric came down from Heaven to help. Note my GORGEOUS column capitals. With a jack and a 6×6 post, the porch roof was lifted up a tiny bit so we could…

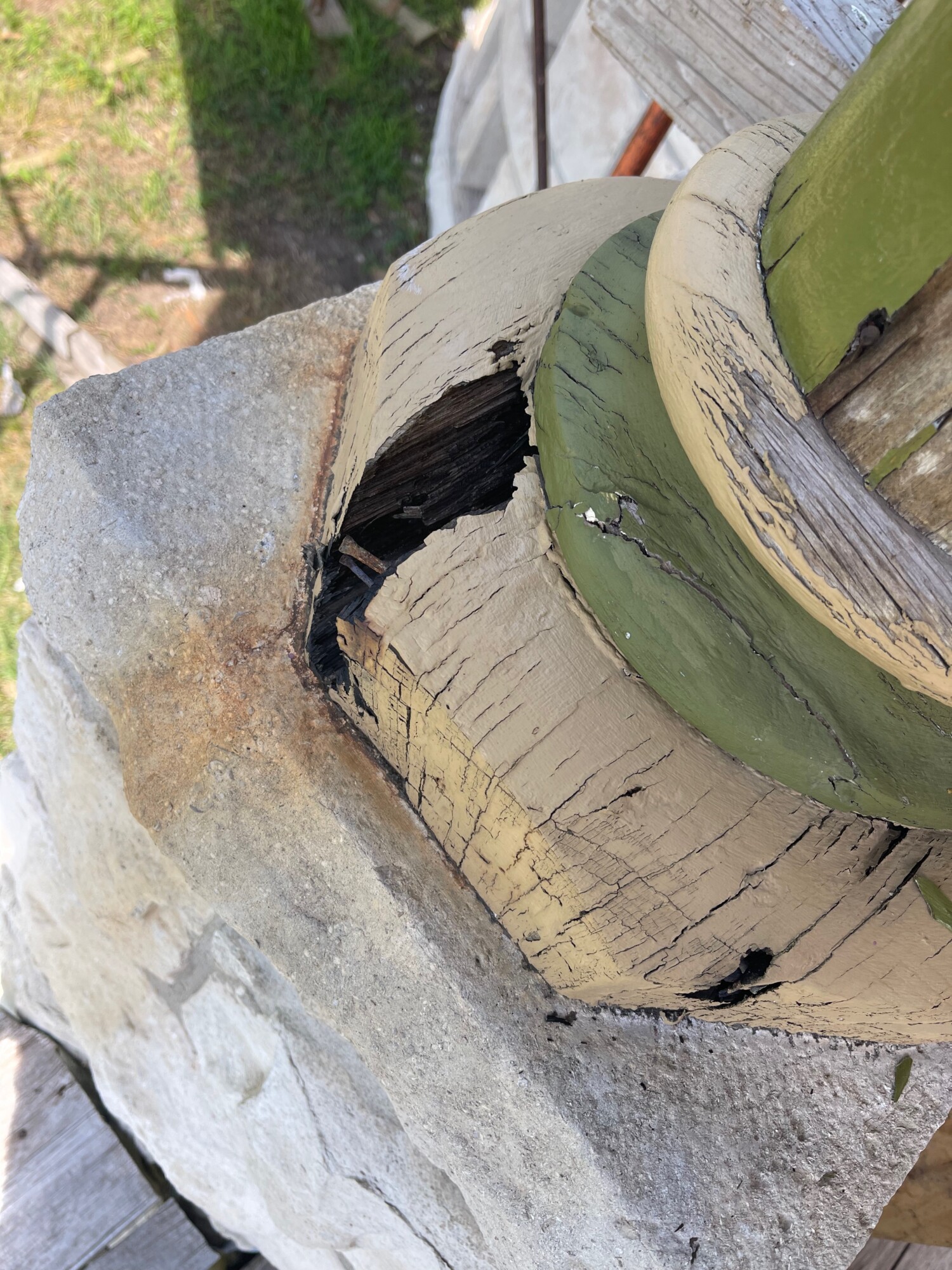

….tear out the rotted base. It proved MUCH worse than it appeared.

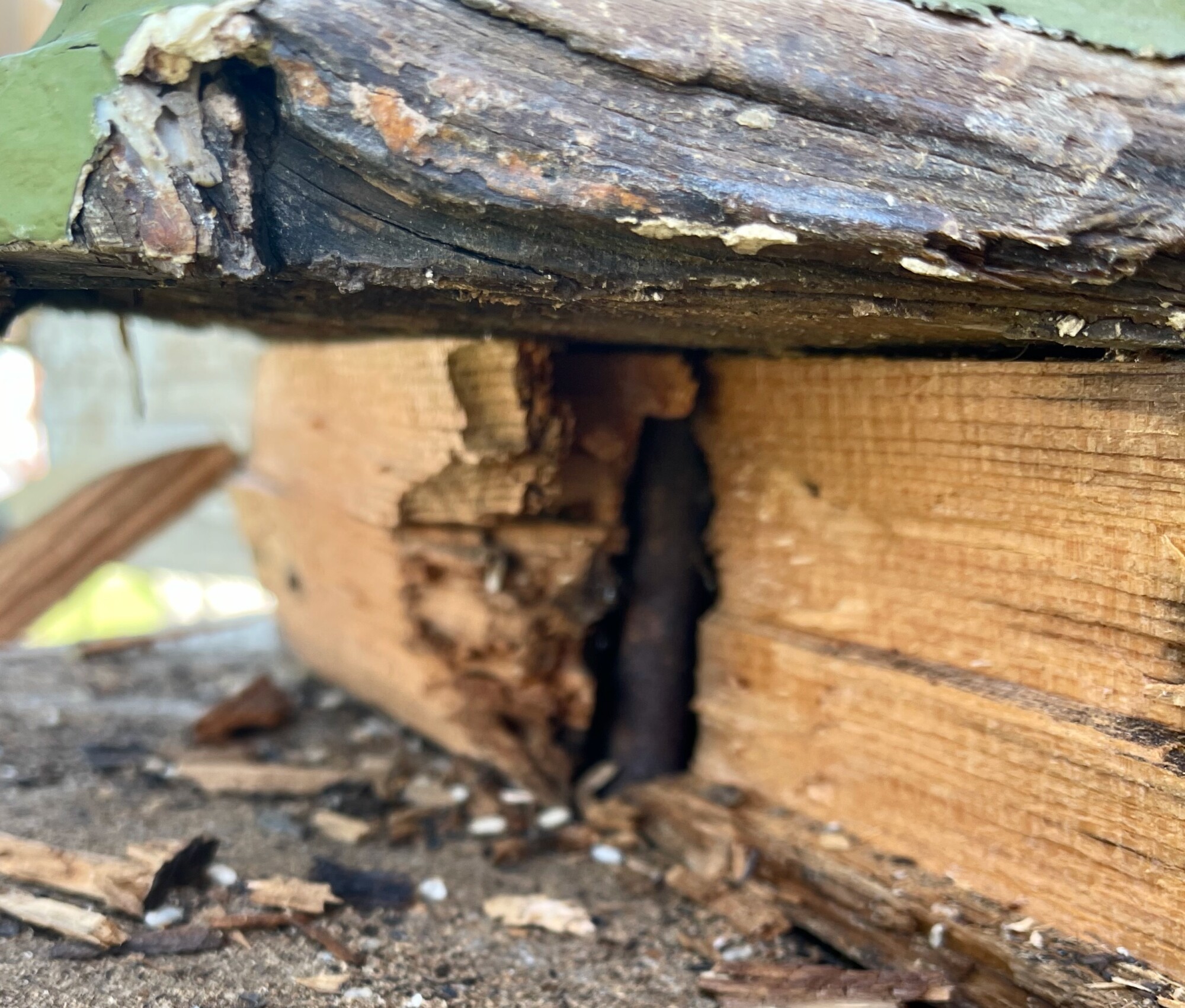

An exciting discovery was the 1894 tie-rod. This has not been seen in 130-years!

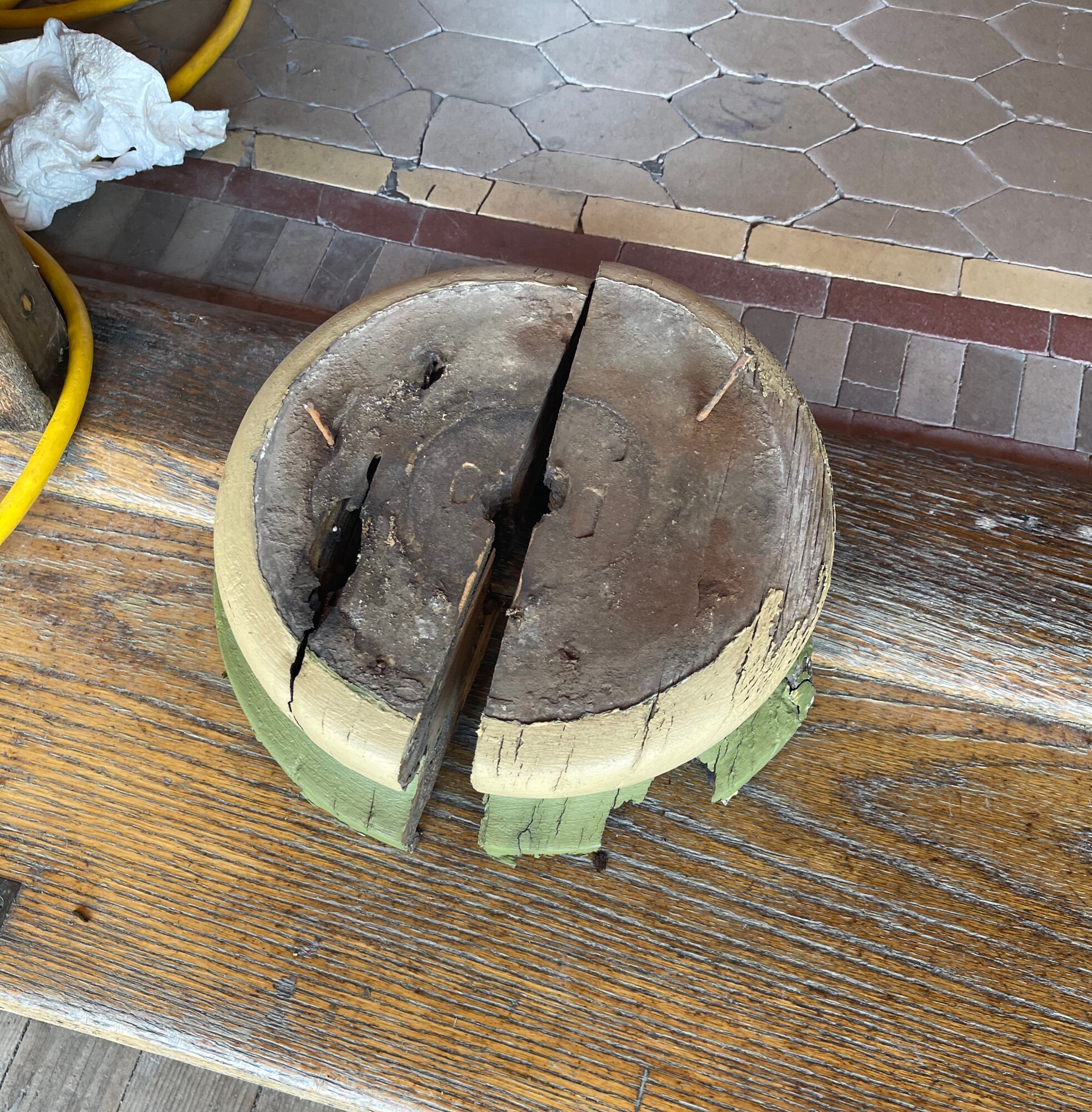

The upper base also proved a mess. I will retain this as a template. In 1894, it was made in two sections to fit around the tie-rod. Cool.
And…drum roll, please…a new upper/lower base was installed. This was made in 2014 by Dr. Doug as a Just-In-Case base.

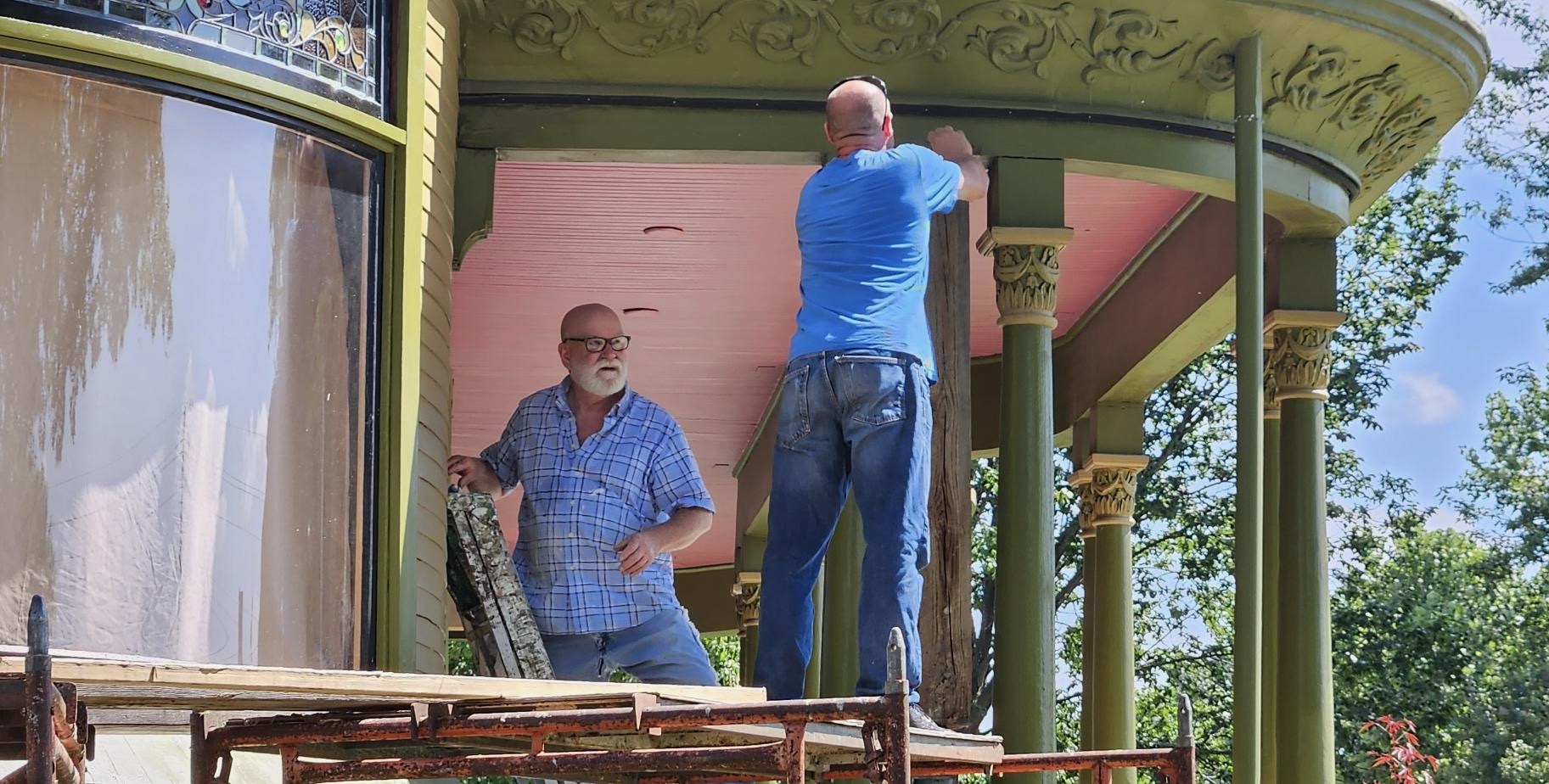

Working away. The stunning man to the left is…me. Photo by Brad Hartzman.
I realized that the damage was not being caused by normal weather conditions (as I had assumed) but rather from water getting (somehow) into the column from the porch roof beam. The adjacent column is also damaged so an investigation is needed to figure out HOW water is getting inside the two hollow columns from the porch beam and how to stop this.
Old houses ain’t easy.
