Ross did…WHAT????????
I did a post on the carriage house in 2019, a kinda summation of discoveries I made concerning the lost front porch of the structure.
The evidence indicates that there was originally a roofed porch in the corner. So, Ross being, well, Ross, he just absolutely must get the lost porch back. NOTE: The turret is 1894; all the other elements (door, windows, dormers) are from the circa-1921 conversion.

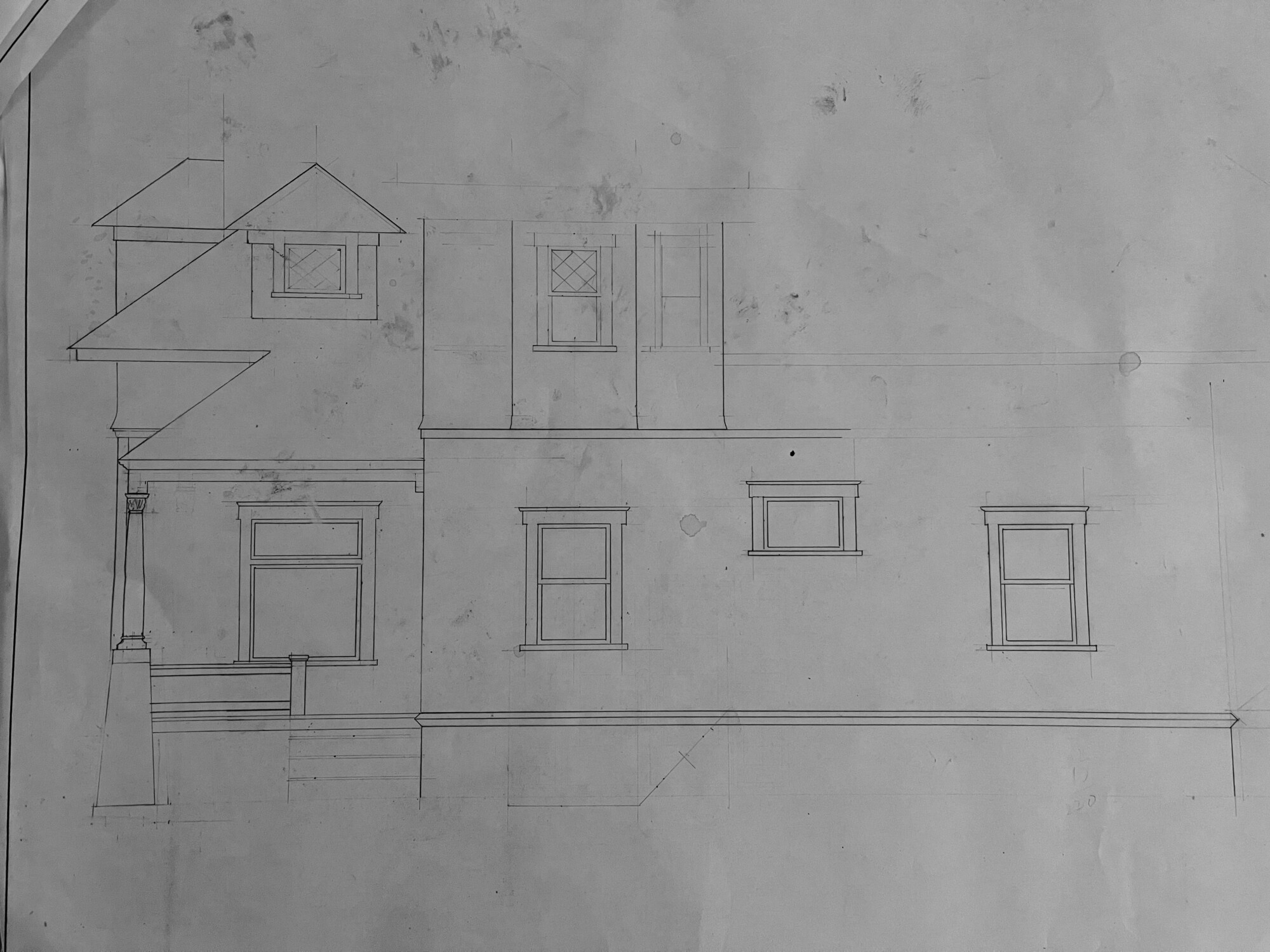

However, what the lost porch looked like would be conjecture. And this is my unfinished conjectural drawing from 2019. The replacement porch is lower left. The turret is upper center.
My plan is to bring the current roofline down, to form the porch roof. Bringing it down would perfectly kiss the outside corner, offering some indication that this proposed plan may have once existed.
The dormer above the new porch, from the circa-1921 conversion, would be reduced in overall height (becoming a 1-sash window rather than a 2-sash window).
There would be a single column, as with the north porch of the Cross House, sitting atop a stone base (again, matching the Cross House).
Under the turret I show a new window, matching the existing Secret Bedroom window, far right.
The existing front door would be relocated to the porch, being on the north wall (where the small window now is).
While I plan to proceed with creating a new porch to replace the lost original, I decided to…ahhh…make some additional changes.
And now would be a good time for you to get a glass of wine.
I will wait till you return….
…wine in hand? Good, let’s proceed.

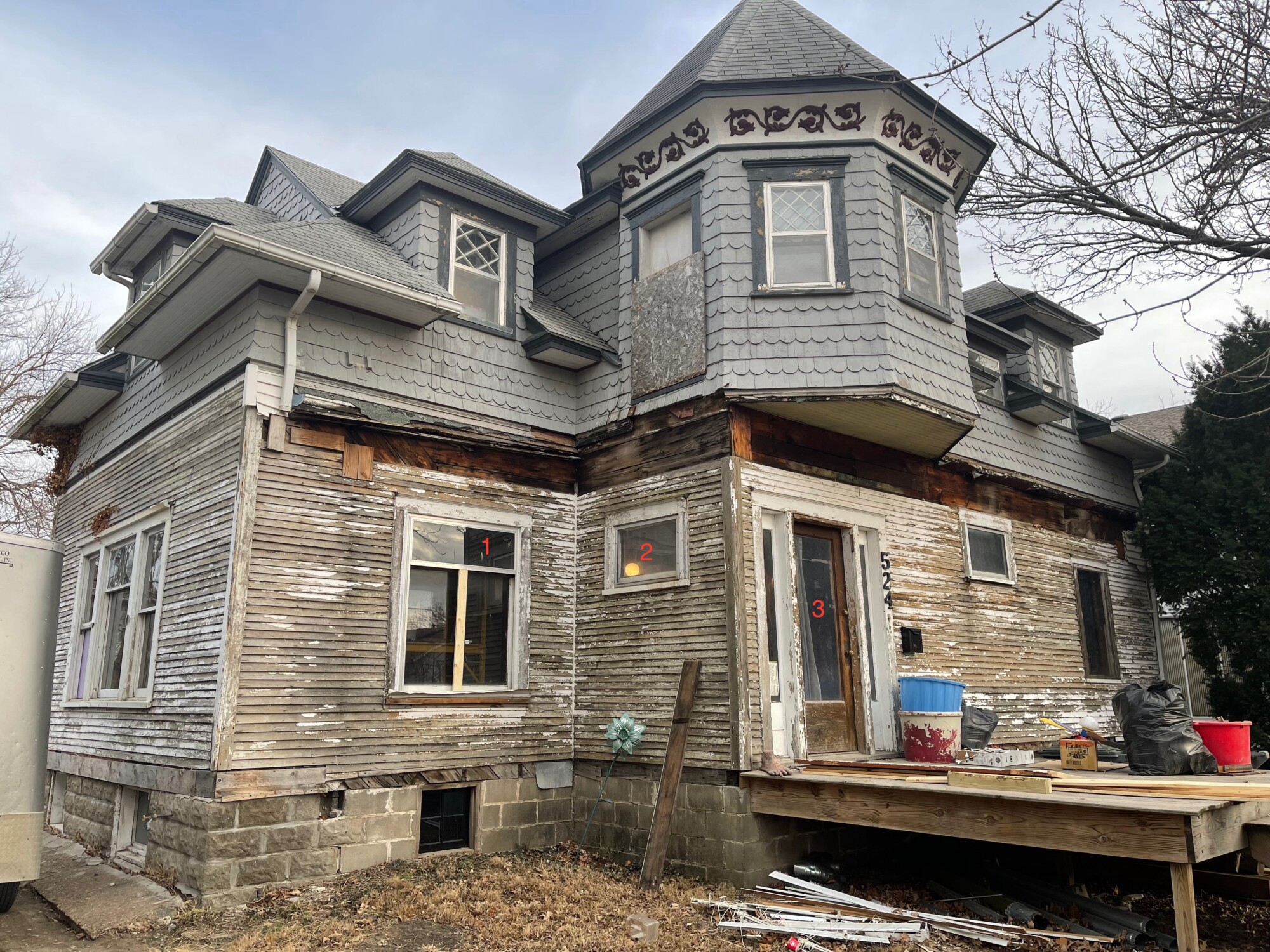

The large window center left is marked #1. See? (Click to enlarge.) Over to its right is a small window, #2. Over to its right is the front door (#3).
I am relocating 1, 2, and 3. Each will be repositioned:
- #1 will become #2. The new location of the small window.
- #2 will become #3. The new location of the entry door.
- #3 will become #1. The new location of the large window, under the turret.
Following this?

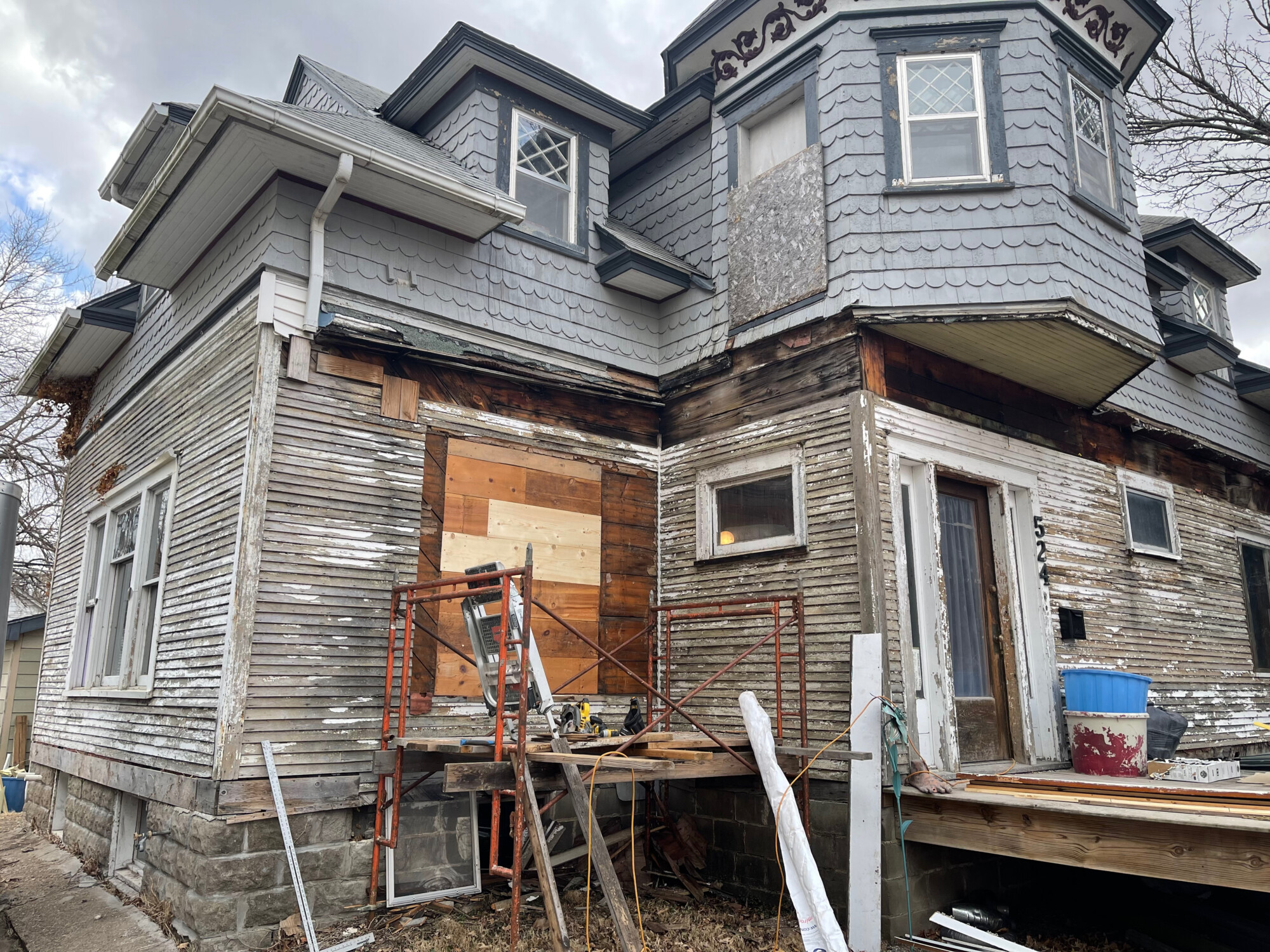

Today, the large window (#1) was removed. The window has a large single sash, with a diamond-paned leaded-glass sash above. This has been dropped off for restoration as it is falling apart. After the whole is restored and painted, it will get installed under the turret. It should look really good there.

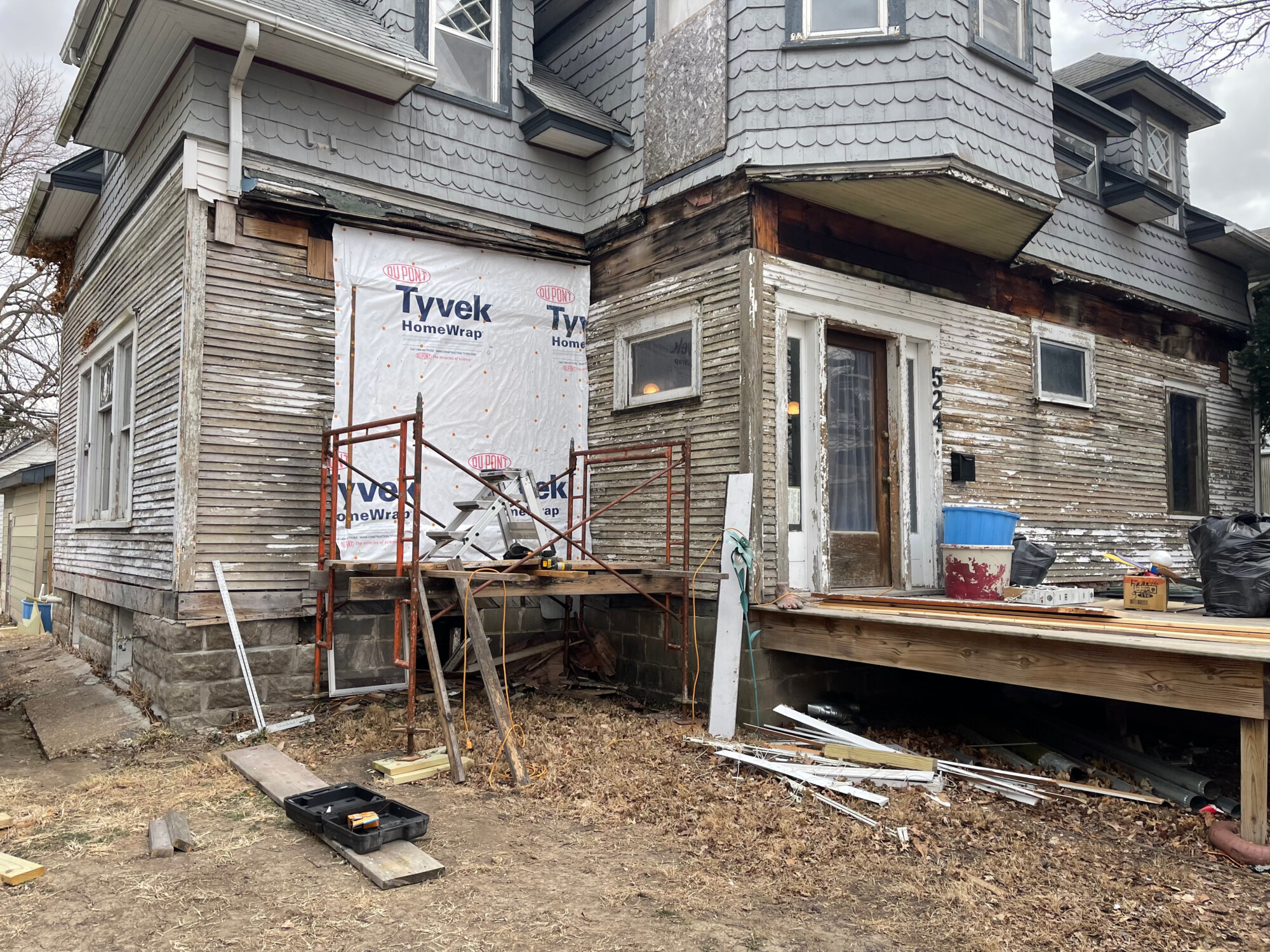

On Friday, the small window (#2) will be removed. After it is restored it will go where window #1 was, now covered with Tyvek.
Moving the front door to the new porch is a no-brainer. But flipping #1 and #2 was…as I know you will agree…just genius.
With the new porch in place, a person would have been able to look through the large window (#1) and into the living room.
Creepy.
But by replacing the large window (#1) with the small window (#2), privacy is afforded. Ross happy.
I also never liked the idea of a banal window under the turret. I have been pondering this since 2019 and kept thinking: There needs to be a better window under the turret. So, by moving window #1, and its diamond-paned upper sash, to under the turret, one’s eye will be drawn to the turret as a focal point. And I think the two will well complement each other, in their both being dynamic elements.
This is what the carriage house looked like when I purchased the property in 2014. The huge porch was part of the circa-1921 conversion. It was in a profound state of decay and needed to be wholly rebuilt.
But why rebuild a circa-1921 porch wholly at odds with the 1894 carriage house? Why rebuild something which diminished the dynamic turret? Oh, the horror.
The problem though is that the result of what I did was a curious and not attractive mix of 1894 and 1921. (Again, the turret is 1894 but everything else…door, windows, and dormers…are 1921.)
My goal, thus, has been to develop a THIRD iteration of the carriage house, and one the reinforces its 1894 qualities, and highlights the dramatic turret.
To this end…
…in addition to the changes outlined above, I plan to remove the curious flat-footed dormer sandwiched between the turret and the dormer to the right. I may…may…also change the right dormer from a 2-sash to a 1-sash, matching the reconfigured dormer to the far left. These changes would allow the edge of the roofline to be continuous, instead of being interrupted. And THIS would allow one’s eye to focus on the turret, the ONLY element puncturing the roof edge line.
It is important to note that all my changes will only impact later alterations to the carriage house. Original elements will remain, untouched.
To me, the carriage house represents a kinda 3-dimensional historical preservation chess game. All old buildings evolve over time. It is common though for such changes to…ahh…diminish the original structure, the artistic portrait envisioned by the architect.
Now, I do not think all later changes to a building should be reversed. If I did, I would return the carriage to a literal carriage house with a hayloft on the second floor!
So, the 3-dimensional historical preservation chess game here is NOT to erase all aspects of change to the carriage house, but to figure how to make 1894 and 1921 blend together in an attractive manner.
It ain’t easy.
But I do enjoy a good game of chess.
